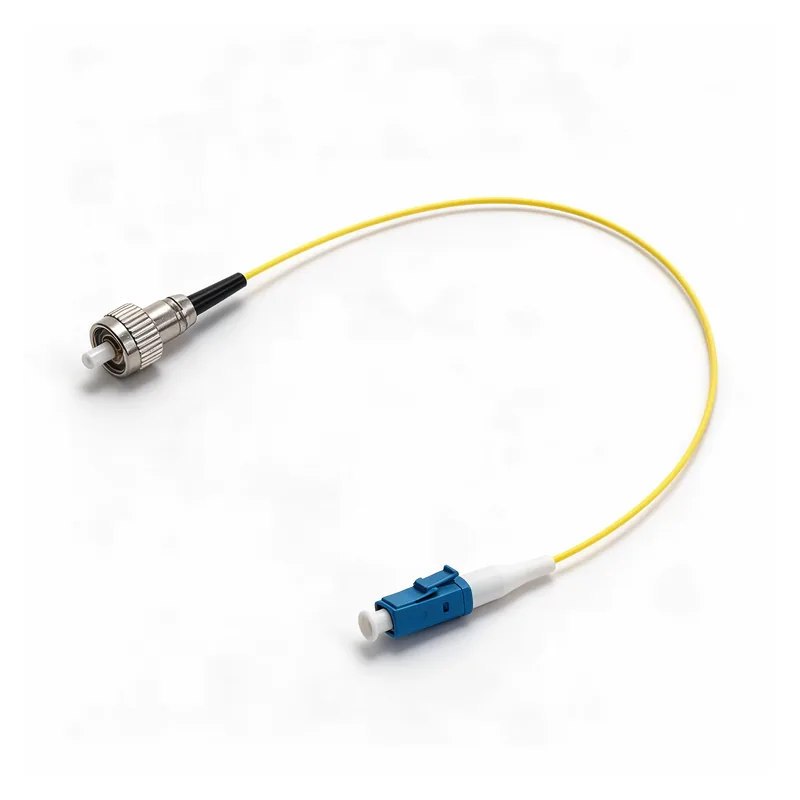

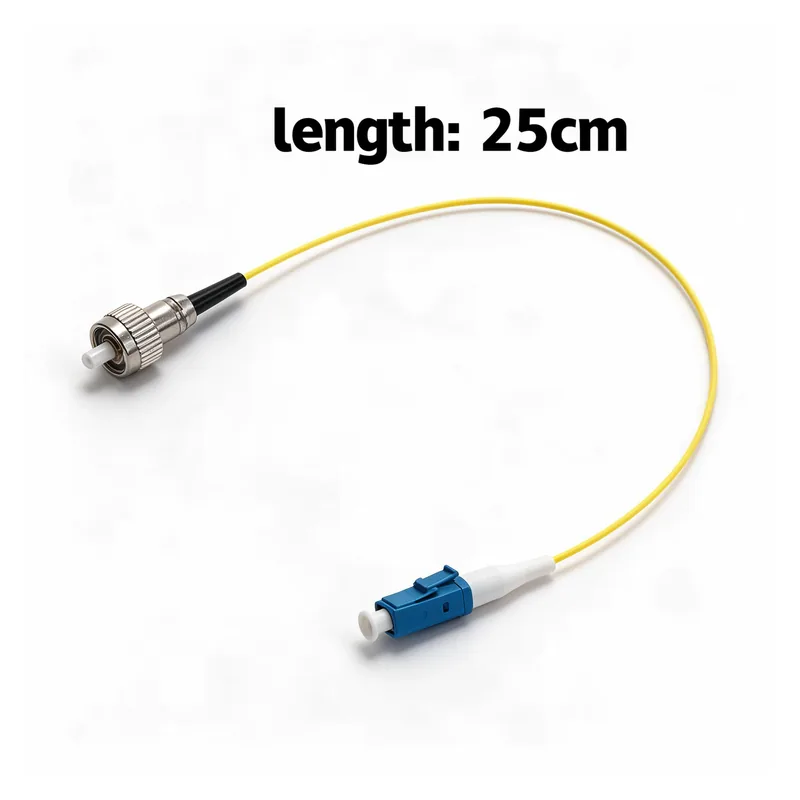

FCU-LCU Single Mode G652D 0.9mm LSZH Yellow Fiber Patch Cord

• RF30001 Datasheet (PDF)

  Download

Product Overview

• This single mode fiber patch cord is designed for optical communication systems requiring stable signal transmission. It uses G.652D single mode fiber with a 0.9mm LSZH cable structure and FC/UPC to LC/UPC connector configuration.

• The compact cable design supports flexible installation while maintaining optical performance. Customized specifications can be reviewed according to project requirements.

Product Highlights

• G.652D single mode fiber for optical communication applications.
• FC/UPC to LC/UPC connector configuration for compatible equipment.
• 0.9mm compact cable diameter for space-saving installation.
• LSZH jacket material for low smoke and halogen-free requirements.
• Low insertion loss performance with ≤0.3dB specification.
• Available for customized length and project requirements.

Applications

• This fiber patch cord is suitable for optical communication networks, fiber equipment connection, data transmission systems and other applications requiring FC/UPC and LC/UPC interfaces.

Customization & Project Information

• Cable length can be customized according to project requirements.
• Connector configuration can be reviewed for different applications.
• Packaging and labeling requirements can be confirmed during quotation.
• Project specifications should be confirmed before production.

Quality & Manufacturing

Product performance verification includes optical performance tests, vibration tests, impact tests, mating durability tests and environmental tests according to specified requirements.

FAQ

• What fiber type is used? G.652D single mode fiber.

• What connectors are supplied? FC/UPC and LC/UPC connectors.

• Can cable length be customized? Yes, customization can be reviewed according to project requirements.

• What is the cable material? LSZH jacket material.

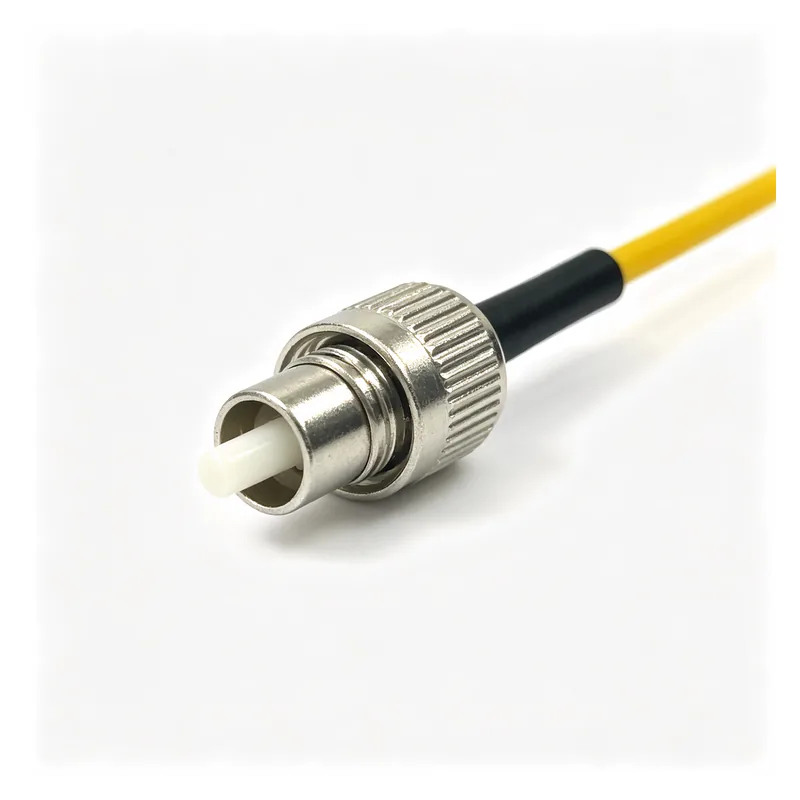

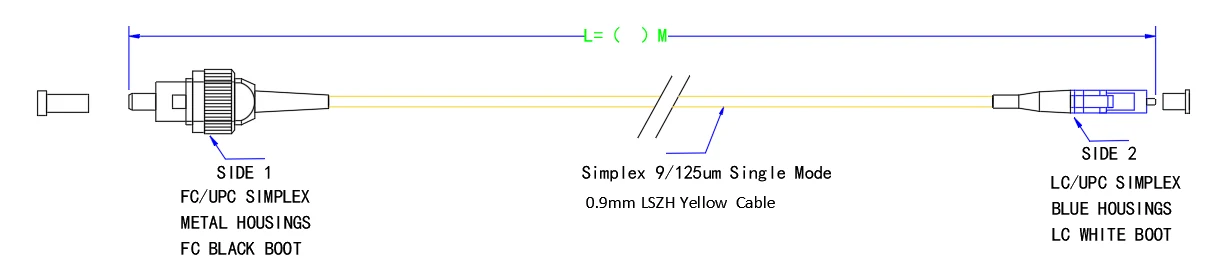

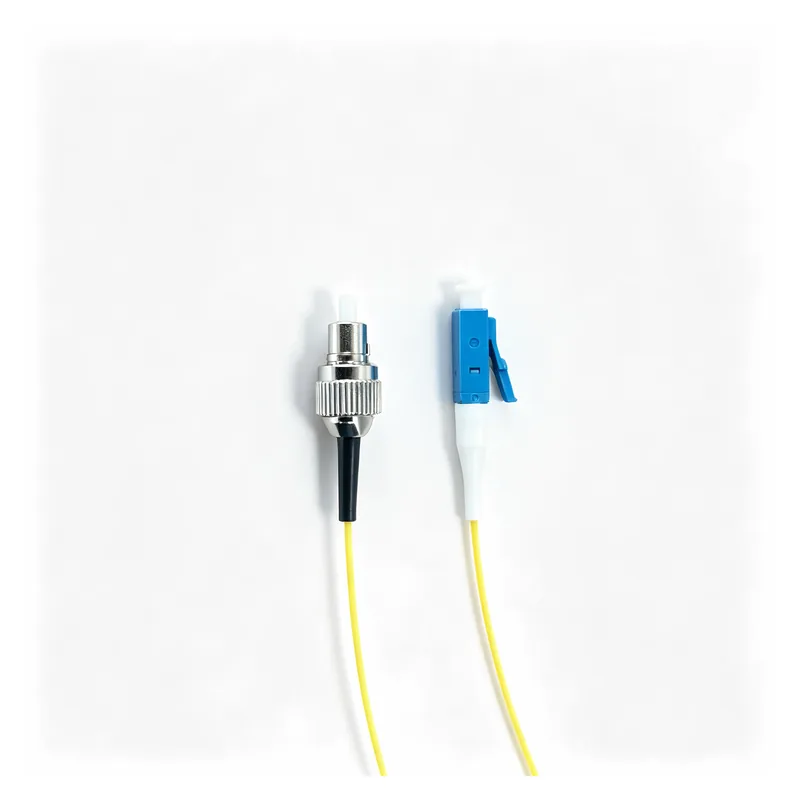

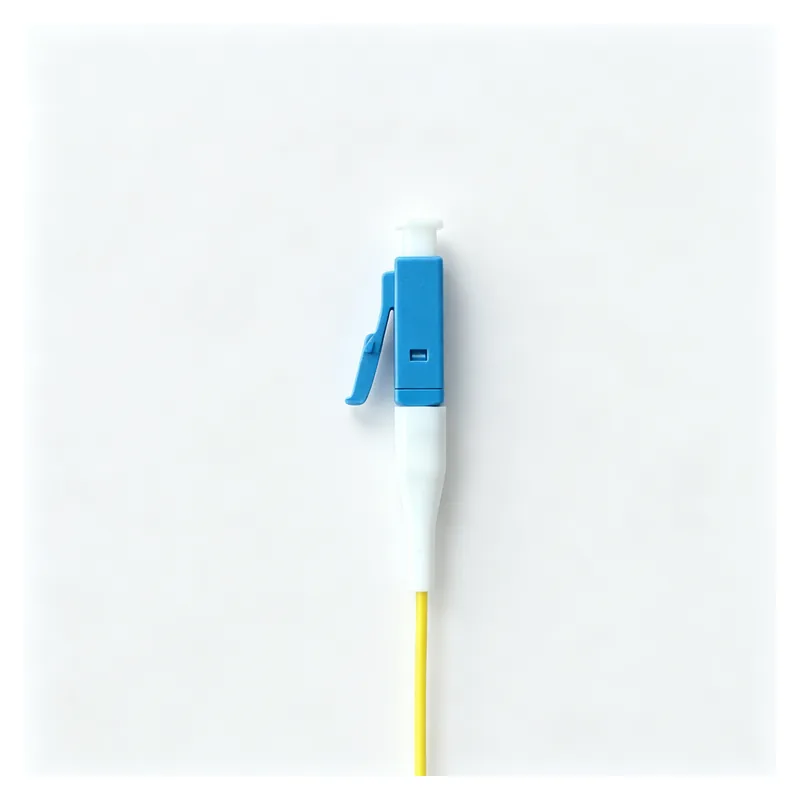

Product Structure & Connector Details

Product structure drawing and FC/LC connector reference images.

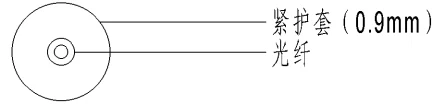

Fiber Cable Structure

Fiber cable construction and dimension reference images.

Optical Performance Test

Optical performance and measurement reference images.

Mechanical & Environmental Test

Reliability test reference images.
